FiberLUX 3D

  • Brands ElettroLaser
  • Product Code: M303030
  • Availability: Pre-Order
To meet the increasingly growing needs in the jewelery and industry sectors, ElettroLaser offers FiberLUX 3D to engrave and cut via laser on planar and non-planar surfaces.It is also equipped with a laser source in ytterbium-doped fiber optics and is...

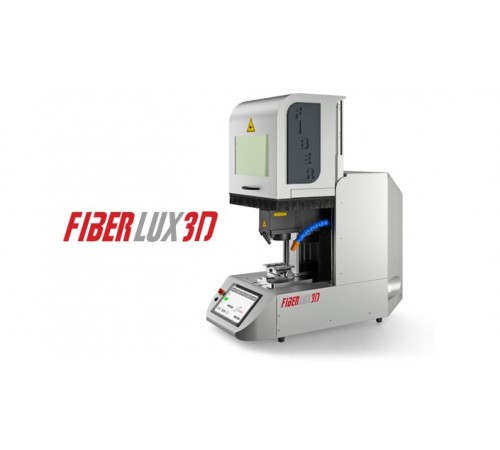

To meet the increasingly growing needs in the jewelery and industry sectors, ElettroLaser offers FiberLUX 3D to engrave and cut via laser on planar and non-planar surfaces.

It is also equipped with a laser source in ytterbium-doped fiber optics and is a machine with low environmental impact and low maintenance.

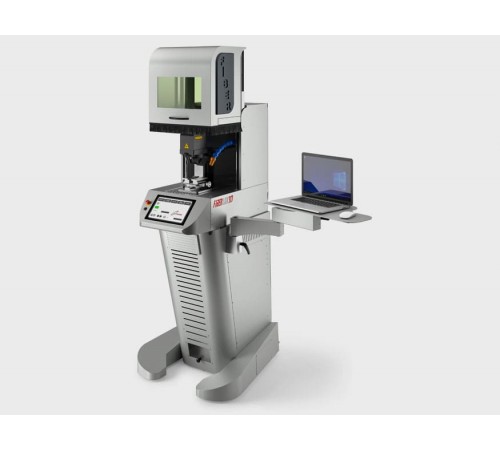

The new 3D, thanks to the complete restyling, can be supplied with its on stand, or even in the traditional desktop version if it is necessary to safeguard the spaces.


APPLICATIONS

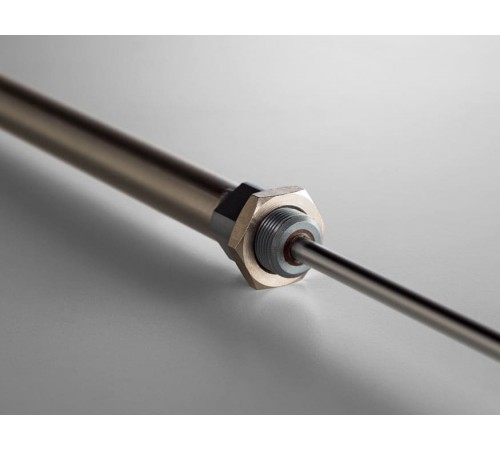

It allows to mark and cut on planar and non-planar surfaces with maximum unevenness approximately 35 mm, in addition to standard works like the other Fiberlux versions, it is always possible to engrave and cut on gold, silver, steel, etc., in particular: logos, brands, photogravures, texts, graphic designs, etc.
With a maximum marking area of 160x160 mm and with resolutions up to 20 μm.

POWERS AND MAIN FEATURES
20 W30 W50 W70 W100 W

It is equipped with the innovative "user-friendly" focusing system with overlapping pointers, through the manual adjustment of the "Z" axis, and can be supplied with a camera for the working area, this for an optimization of the processing or for any remote assistance.

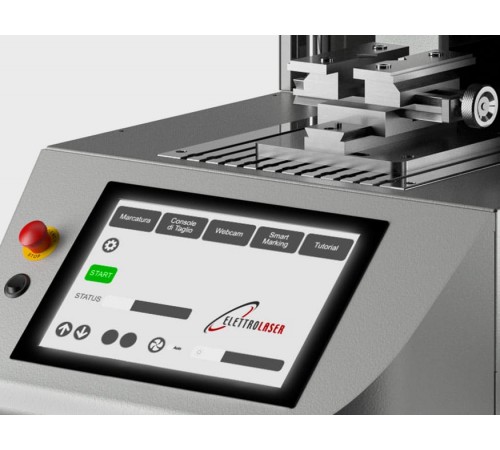

This version also features a novelty, the dual management of the machine via PC and the touch screen console on the front, which allows the use of the marker without the use of the computer.

The machine is supplied complete with SOFTWARE, easy and intuitive, capable of importing files from the most well-known computer-design programs currently in existence (svg, dxf, bmp, plt, jpg, dwg, etc.).

The PRO line is provided with included the software for trademarks with which it is possible to affix the title based on the new reference protocol for the laser marking of precious metals and proceed to electronic punching through a simple USB token.

OPTIONAL AVAILABLE

  • X & Y clamp, for fixing and positioning the pieces;
  • Rotary axis system (for engraving inside and outside the rings and more);
  • Internal camera;
  • Automatic drag & clam (for production in series);
  • Dust aspirator, to optimize the cleaning of the machine and the work area (available in 2 models, one ideal for small production and one ideal for intensive production);
  • NEWS 2019: The new advanced auto-detection system of the parts to be marked can be integrated as an option. Thanks to an advanced multidimensional scanner, the exact positions of the pieces will be acquired in the space, allowing the marking software to realize the work without the necessary orientation of the same in the working area.

WHY CHOOSING THE FIBERLUX PRO 3D

The PRO series is the top of the ElettroLaser range. It offers the best quality in terms of engraving and laser cutting and is the optimal choice for those who must work on planar and non-planar surfaces, convex and bas-reliefs and thanks to the wide range of available powers covers the most varied needs in terms of production.


FIBERLUX 3D 20FIBERLUX 3D 30FIBERLUX 3D 50FIBERLUX 3D 70FIBERLUX 3D 100
OUTPUT POWER20 W30 W50 W70 W100 W
WAVE LENGHT1064 nm
M2< 1,6
POWER SUPPLY230 V 50/60 Hz opt. 110 V on request
ABSORBED POWER500 W500 W500 W600 W650 W
WORKING SPACE DIMENSION (LXDXH)230x380x350 mm
WEIGHT55 kg55 kg55 kg60 kg60 kg
FOCAL 100: MARKING AREA / SPOT60x60 mm / 11 um
FOCAL 160: MARKING AREA / SPOT110x110 mm / 26 um
SPEED OF GALVO HEAD6000 mm/s
MAX PULSE ENERGYup to 1,5 mJ
MAX FREQUENCY1000 kHz
COOLING SYSTEMair cooled
PULSE DURATION10 to 200 ns
LASER CLASS/MACHINE CLASSIV / I
FOCUS RANGE IN Z DIRECTION WITH 100 MM FOCAL LENSE10 mm
FOCUS RANGE IN Z DIRECTION WITH 160 MM FOCAL LENSE35 mm
