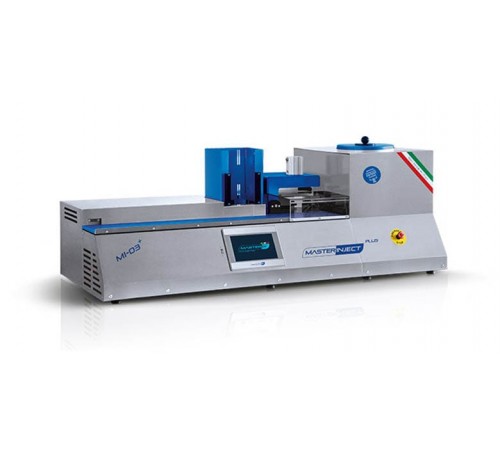

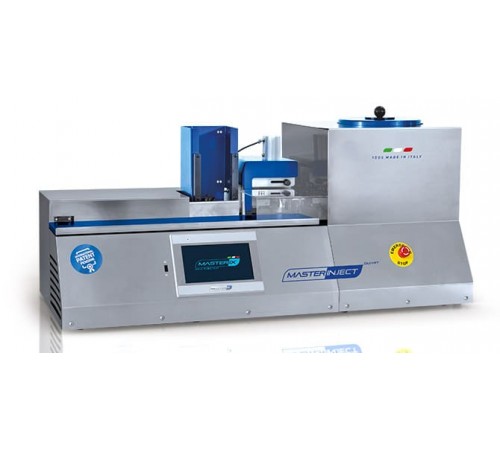

Masterix MI-03 Digital Wax Injector

  • Brands Masterix
  • Product Code: C1070103
  • Availability: Pre-Order
Masterix MI-03 Digital Wax Injector Features MI-03 SMARTFully automatic wax injector for single or double operator, equipped with aluminum tank (4.5 kg capacity), 10 cm³ piston injection system, 7 "touch screen, RFID reader and writer, self-centering pliers (Dim. 100x100X50 mm) automatic tire loader and unloader (Dim. 100x100 mm), cooling system for molds and pump included VAP14.Technical AdvantagesThe molds, even of different sizes, are automatically loaded into the gripper, the processing cycle starts automatically. The operator does not have to press any keys. Quick and simpleThe gripper centers the mold preparing it for injection. The mold parameters are set or automatically read on the RFID Tag, if present in the mold. Significant time savings.The mold is automatically injected according to the set parameters. Easy for the operatorThe mold is rotated and automatically discharged onto the cooler in front of the operator. Immediate and compactThe cooler keeps the temperature of the molds constant, speeding up the cooling of the waxes. The cooler temperature can be set and adjusted directly from the touch screen.Economic AdvantagesElimination of waiting times and consequent reduction of operator downtime. Increase in productionStrong increase in production, quality of models produced, elimination of waste.Recommended for inexperienced operators.Dimensions: (WxDxH)Machine: 96x65x45 cmPacking: 115x80x65 cmWeight:Machine: 44kgPacking: 83kgPower supply: 240VAC / 120VAC (optional)System pressure: 6 bar..

Masterix MI-03 Digital Wax Injector


Features MI-03 SMART
Fully automatic wax injector for single or double operator, equipped with aluminum tank (4.5 kg capacity), 10 cm³ piston injection system, 7 "touch screen, RFID reader and writer, self-centering pliers (Dim. 100x100X50 mm) automatic tire loader and unloader (Dim. 100x100 mm), cooling system for molds and pump included VAP14.

Technical Advantages

  1. The molds, even of different sizes, are automatically loaded into the gripper, the processing cycle starts automatically. The operator does not have to press any keys. Quick and simple
  2. The gripper centers the mold preparing it for injection. The mold parameters are set or automatically read on the RFID Tag, if present in the mold. Significant time savings.
  3. The mold is automatically injected according to the set parameters. Easy for the operator
  4. The mold is rotated and automatically discharged onto the cooler in front of the operator. Immediate and compact
  5. The cooler keeps the temperature of the molds constant, speeding up the cooling of the waxes. The cooler temperature can be set and adjusted directly from the touch screen.

Economic Advantages

  1. Elimination of waiting times and consequent reduction of operator downtime. Increase in production
  2. Strong increase in production, quality of models produced, elimination of waste.
  3. Recommended for inexperienced operators.


Dimensions: (WxDxH)
Machine: 96x65x45 cm
Packing: 115x80x65 cm
Weight:
Machine: 44kg
Packing: 83kg
Power supply: 240VAC / 120VAC (optional)
System pressure: 6 bar
