Orotig EVO WHITE - Laser Welding Machine

  • Brands Orotig
  • Product Code: M3OEVOW
  • Availability: Pre-Order
EVO White is a compact, versatile Nd:YAG laser welder designed for workshops that need speed, precision, and reliability in a small footprint. Its EnergyTune system automatically adjusts welding parameters based on metal type and spot size, making it extremely intuitive even for new operators. A l...

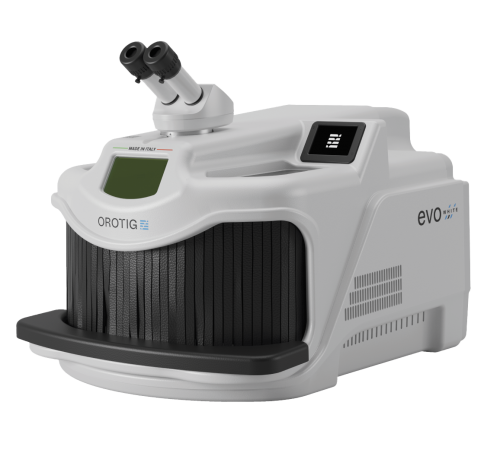

EVO White is a compact, versatile Nd:YAG laser welder designed for workshops that need speed, precision, and reliability in a small footprint. Its EnergyTune system automatically adjusts welding parameters based on metal type and spot size, making it extremely intuitive even for new operators. A large 25.5‑liter welding chamber, adjustable LED lighting, and high‑grade safety shutters ensure a comfortable and secure working environment. Built with premium components and engineered in Italy, EVO White delivers dependable performance with minimal maintenance.


Specification EVO White
Crystal Type Nd:YAG @ 1064 nm
Pulse Power 160 J
Pulse Duration 25 ms
Peak Pulse Power 7 kW
Average Power 75 W
Pulse Frequency 0–15 Hz
Electrical 115–230 VAC ±10%, 1P+N+PE, 50/60 Hz
1.8 kW
Focal Diameter 0.15 – 1.5 mm
Command Access 3.5" capacitive touchscreen (external)
Rotary switch (internal)
Cooling System Liquid cooled (4 L) + forced ventilation
Weight 32 kg
Optics Leica 45° stereo microscope, 10× zoom, right‑eye crosshair
Accessories Adjustable height table, Dynascope head,
camera & monitor, pneumatic footswitch,
internal wrist rest, adjustable microscope stand
