Fiberlux PRO 200W

  • Brands ElettroLaser
  • Product Code: M3010611
  • Availability: Pre-Order
The growing demand by the industrial sector for optimization of execution times and Laser engraving quality, and especially in cutting power, pushed ElettroLaser to introduce the most powerful marker ever of its catalog, the Fiberlux PRO 200W.The Fiberlux PRO 200W, incorporates a...

The growing demand by the industrial sector for optimization of execution times and Laser engraving quality, and especially in cutting power, pushed ElettroLaser to introduce the most powerful marker ever of its catalog, the Fiberlux PRO 200W.

The Fiberlux PRO 200W, incorporates all the features and quality of the PRO series, but it is particularly striking for its cutting power, it is capable of cutting large thicknesses with efficiency of materials such as gold, silver, steel, aluminum and many other alloys.

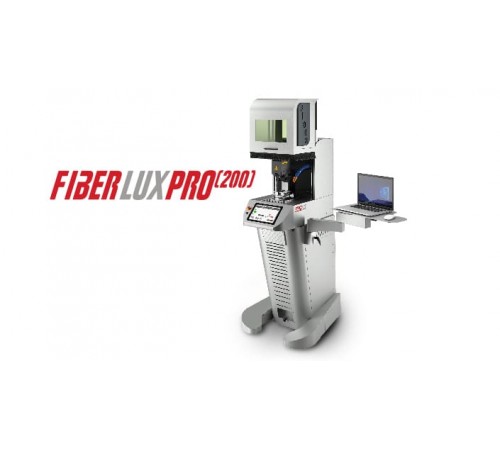

The new PRO 200W is supplied together with the stand, with the latest generation integrated aspirator.


APPLICATIONS

It allows to engrave objects of any metal (gold, silver, steel etc.), in particular logos, brands, photo-engraving, texts, graphic designs, 3D bas-reliefs and, using the high precision rotary axis system, the inside and the outside of rings (this one provided as an accessory). With a maximum marking area of 160x160 mm and with resolutions up to 20 μm.

MAIN FEATURES

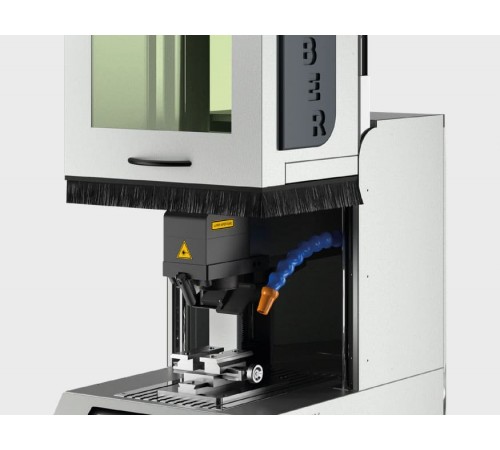

It is equipped with the innovative "user-friendly" focusing system with overlapping pointers, through the manual adjustment of the "Z" axis, and can be supplied with a camera for the working area, this for an optimization of the processing or for any remote assistance.

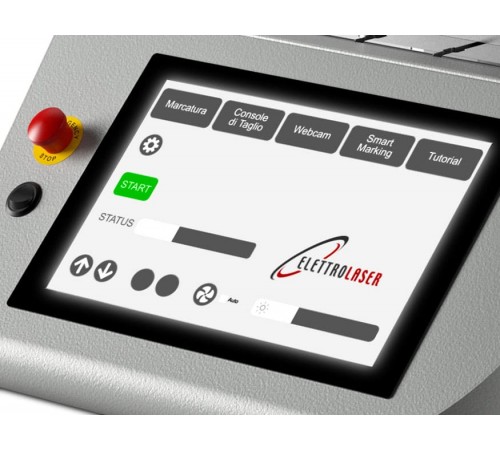

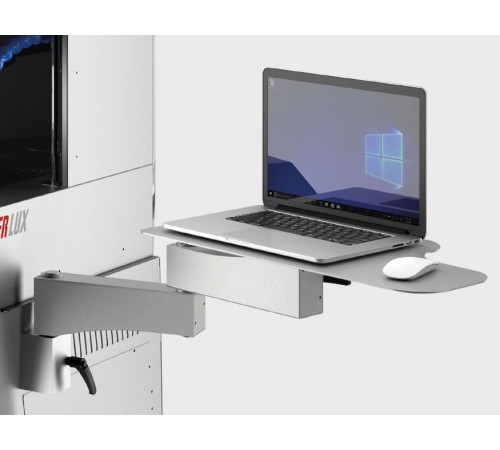

This version also features a novelty, the dual management of the machine via PC and the touch screen console on the front, which allows the use of the marker without the use of the computer.

The machine is supplied complete with SOFTWARE, easy and intuitive, capable of importing files from the most well-known computer-design programs currently in existence (svg, dxf, bmp, plt, jpg, dwg, etc.).

The PRO line is provided with included the software for trademarks with which it is possible to affix the title based on the new reference protocol for the laser marking of precious metals and proceed to electronic punching through a simple USB token.

OPTIONAL AVAILABLE

  • X & Y clamp, for fixing and positioning the pieces;
  • Rotary axis system (for engraving inside and outside the rings and more);
  • Internal camera;
  • Automatic drag & clam (for production in series);
  • Dust aspirator, to optimize the cleaning of the machine and the work area (available in 2 models, one ideal for small production and one ideal for intensive production);
  • NEWS 2019: The new advanced auto-detection system of the parts to be marked can be integrated as an option. Thanks to an advanced multidimensional scanner, the exact positions of the pieces will be acquired in the space, allowing the marking software to realize the work without the necessary orientation of the same in the working area.

WHY CHOOSING THE FIBERLUX PRO 200

The PRO series is the top of the Electrolaser range. It offers the best quality in terms of engraving and cutting. The PRO 200W is particularly suitable for those who have the needs to cut large thicknesses, intense production and the need to reduce the time and cost of execution.


FIBERLUX PRO 200
OUTPUT POWER200 W
WAVE LENGHT1064 nm
M2< 1,4
POWER SUPPLY230 V 50/60 Hz opt. 110 V on request
ABSORBED POWER900 W
WORKING SPACE DIMENSION (LXDXH)250x250x350 mm
WEIGHT130 kg
FOCAL 100: MARKING AREA / SPOT60x60 mm / 11 um
FOCAL 160: MARKING AREA / SPOT110x110 mm / 26 um
FOCAL 210: MARKING AREA / SPOT160x160 mm / 34 um
SPEED OF GALVO HEADup to 7000 m/s
MAX PULSE ENERGYup to 1,5 mJ
MAX FREQUENCY400 KHz
COOLING SYSTEMair cooled
PULSE DURATION30 to 200 ms
LASER CLASSIV / I
