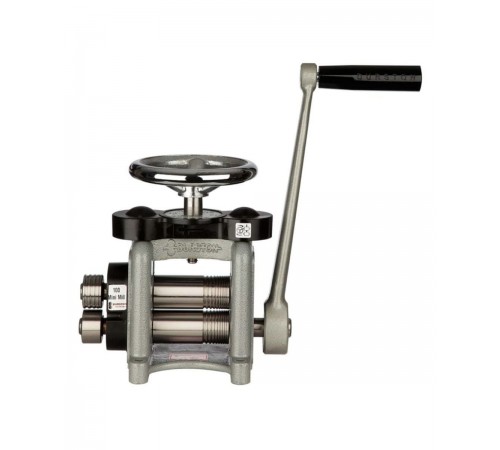

Durston Mini C100 Rolling Mill

categories

Durston Mini C100 Rolling Mill

  • Product Code: MINI-C100
  • Availability: In Stock
Durston Mini C100 Rolling MillThe Durston Mini Rolling Mill is an economic mill combining low price with a significant degree of versatility, with a milling width of 100mm. Its one piece cast iron construction is designed and manufactured for maximum strength and rigidity. Its maintenance-free ...

Durston Mini C100 Rolling Mill

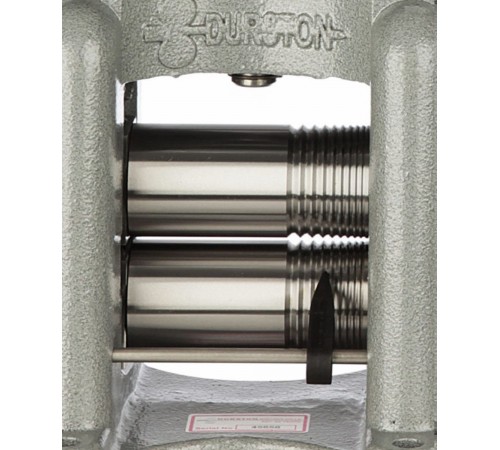

The Durston Mini Rolling Mill is an economic mill combining low price with a significant degree of versatility, with a milling width of 100mm. Its one piece cast iron construction is designed and manufactured for maximum strength and rigidity. Its maintenance-free bearings, and direct drive means a lifetime of consistent rolling. Taking a maximum sheet thickness of 5mm and the maximum wire thickness of 6.5mm, the Mini C100 benefits from 9 wire grooves consistently rolling your wires from 6.5mm to 1mm. The Mini C100 also helps from four half-round extension rollers to increase the versatility of your mill and has large and comfortable-to-read calibrated discs and a wheel on the top for ease of use.

Additional Information:

WEIGHT

17.3 kg

PRODUCT WEIGHT (KG)

15.5KG

PRODUCT LENGTH (MM)

280

PRODUCT WIDTH (MM)

170

PRODUCT HEIGHT (MM)

270

GEARBOX

Direct drive

NUMBER OF GROOVES

9

MAX. SHEET THICKNESS (MM)

5

ROLLER TYPE

Combination

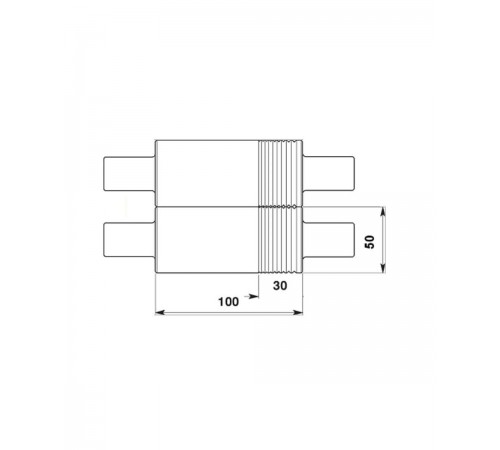

ROLLER DIAMETER (MM)

45

ROLLER LENGTH (MM)

100

SIDE EXTENSIONS

2 & 1.5mm, 3, 4

MAX. WIRE CAPACITY (MM)

6.5mm
